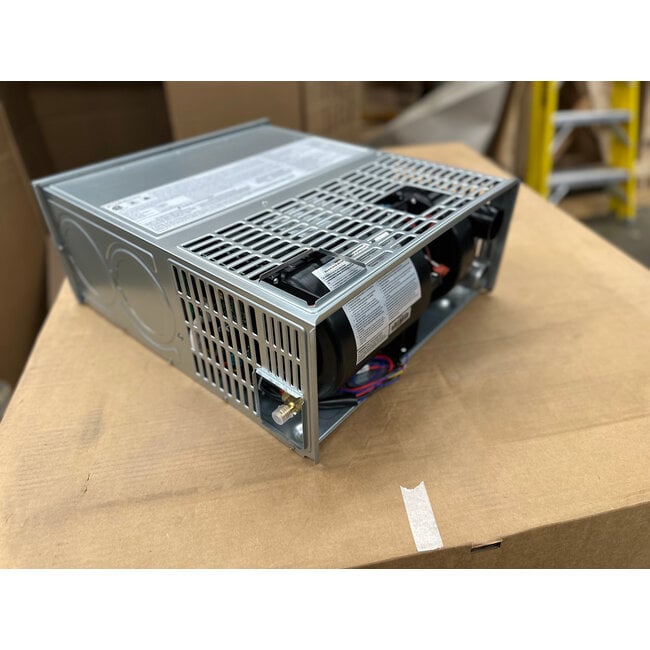

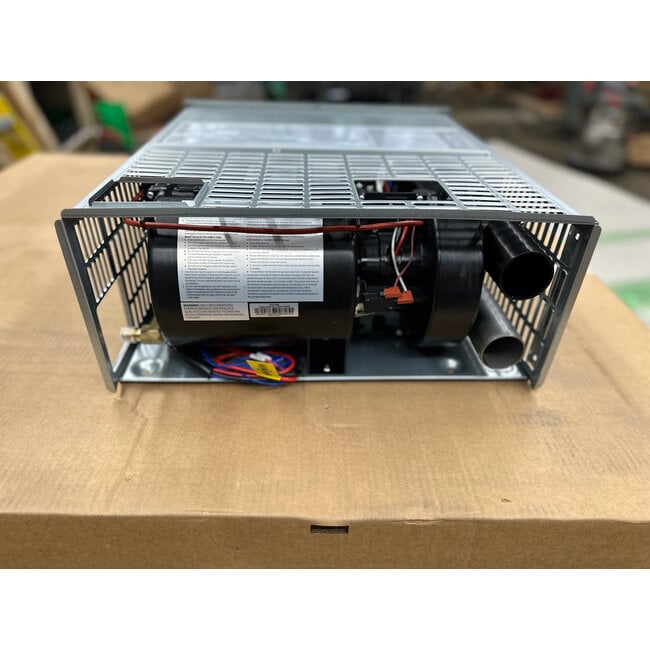

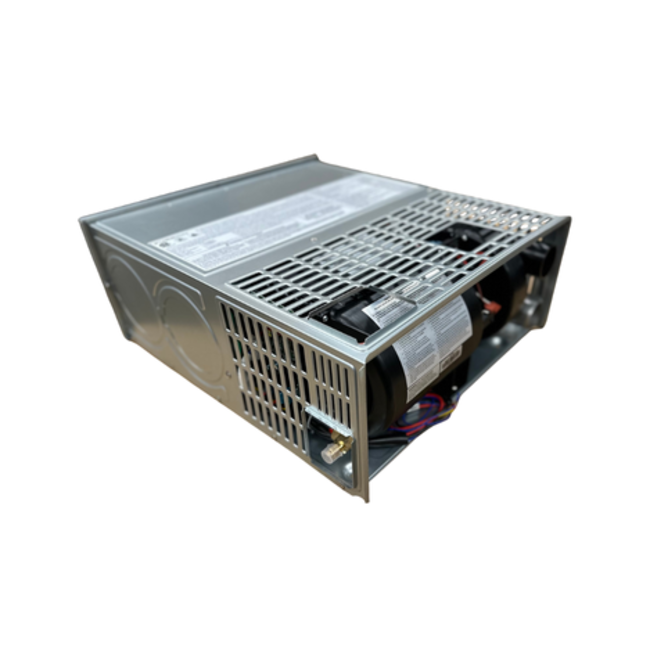

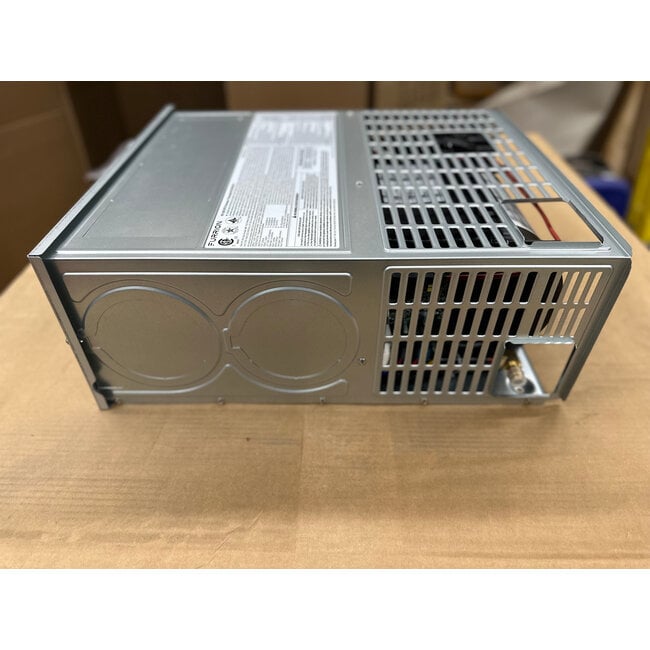

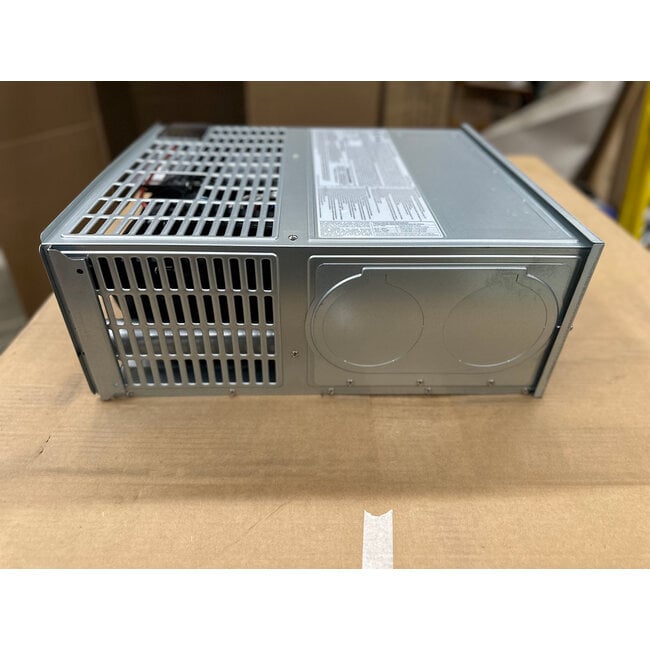

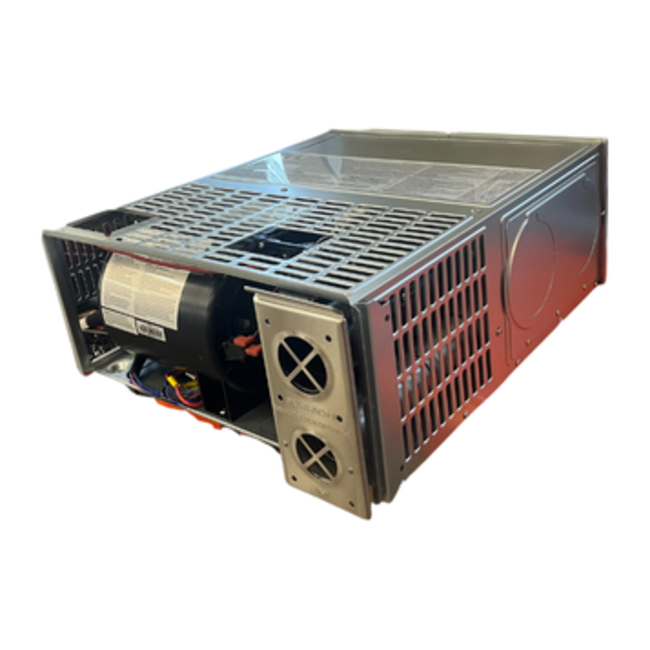

SF-Q Series RV Furnace

Efficient. Flexible. Built for Mid to Large RVs.

Why Choose the SF-Q Series?
Designed for powerful, ducted heating in larger RVs, the SF-Q series offers flexibility with both horizontal and vertical installation options. Its compact footprint makes it ideal for tight or underutilized spaces without sacrificing performance.

Specs at a Glance:

• BTU Input: 30,000

• Voltage: 12V DC

• Amp Draw: 8 Amps

• Weight: 29 lbs

• Fuel Type: Liquid Propane (LP)

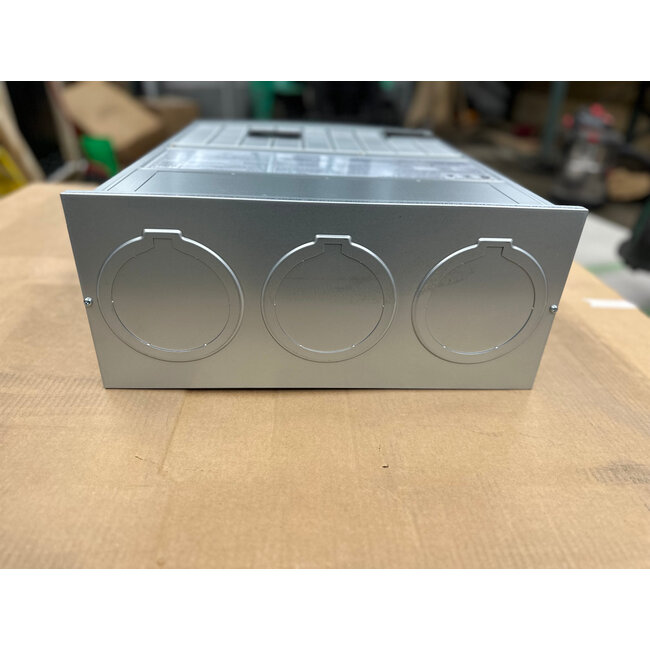

• Ducts Required: (3) 4" Ducts

• Required Return Air: 55 in²

• Unit Dimensions (H x W x D): 7 5/8" x 17 5/8" x 20 3/16"

Perfect for RV owners or builders looking to combine heating power with layout versatility. Ready to install and built to last.

These furnaces were manufactured by Suburban for Lippert and branded under the Furrion name. Functionally, they are identical to the Suburban SF-30VHQ and SF-30Q models, but they feature higher-quality metal components. It's worth noting that these Furrion units were never released to the retail market, so detailed information is limited beyond what we provide here and in the linked resources.

For reference, we’ve included specifications based on the equivalent Suburban models. These furnaces are compatible with any 12V thermostat brand and use Suburban door part numbers #6258APW or #6258AEB.

Please Note: Dometic/Atwood furnaces are approximately 1" narrower than Suburban/Furrion units. Additionally, the gas inlet on Suburban/Furrion models is located on the left side, near the exterior wall, when viewed from outside the RV. Be sure your installation space can accommodate these differences.

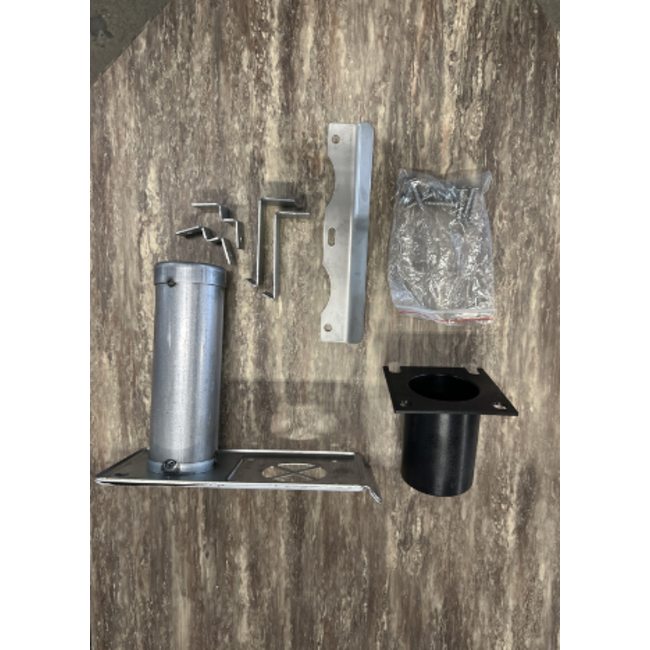

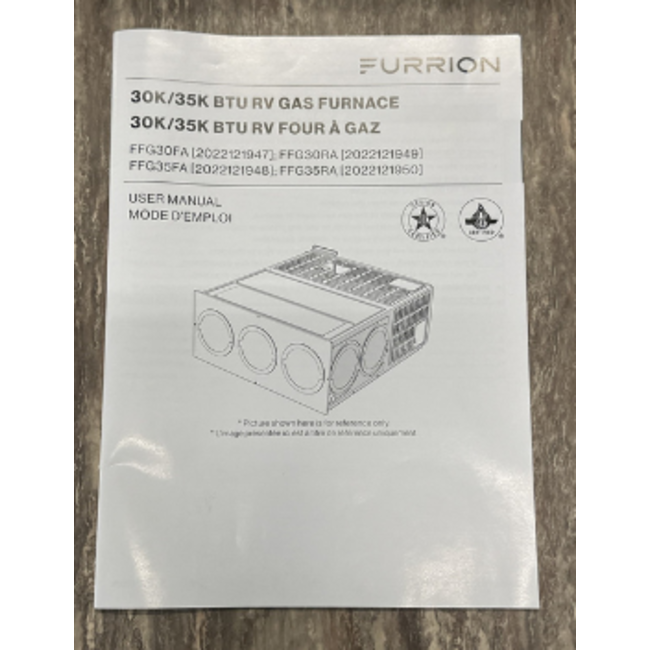

These units include a 1-year parts warranty and come complete with venting hardware, screws, user manual, and related accessories. Although brand new, these furnaces do not come in manufacturer packaging, as they were never intended for retail distribution.
